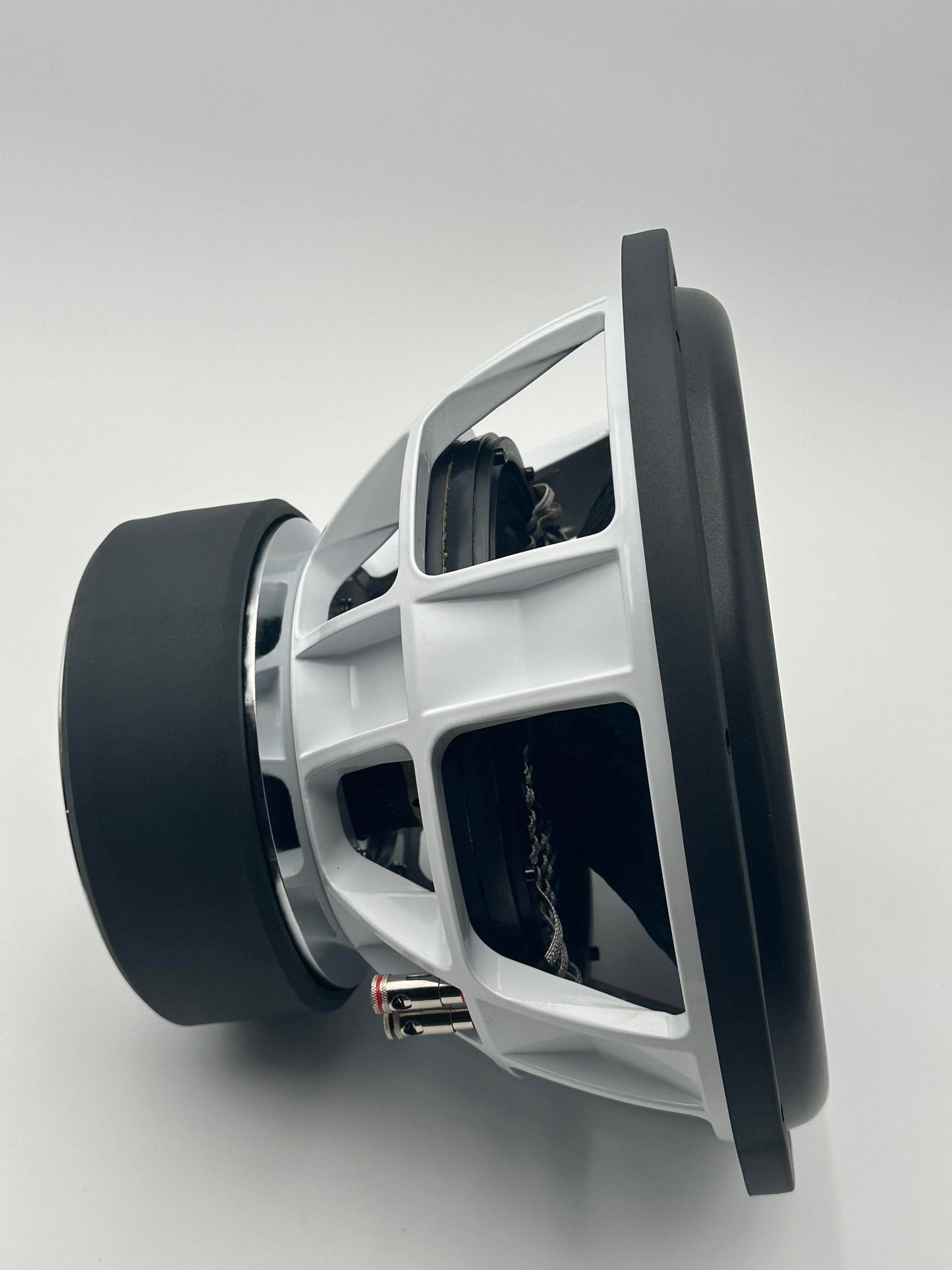

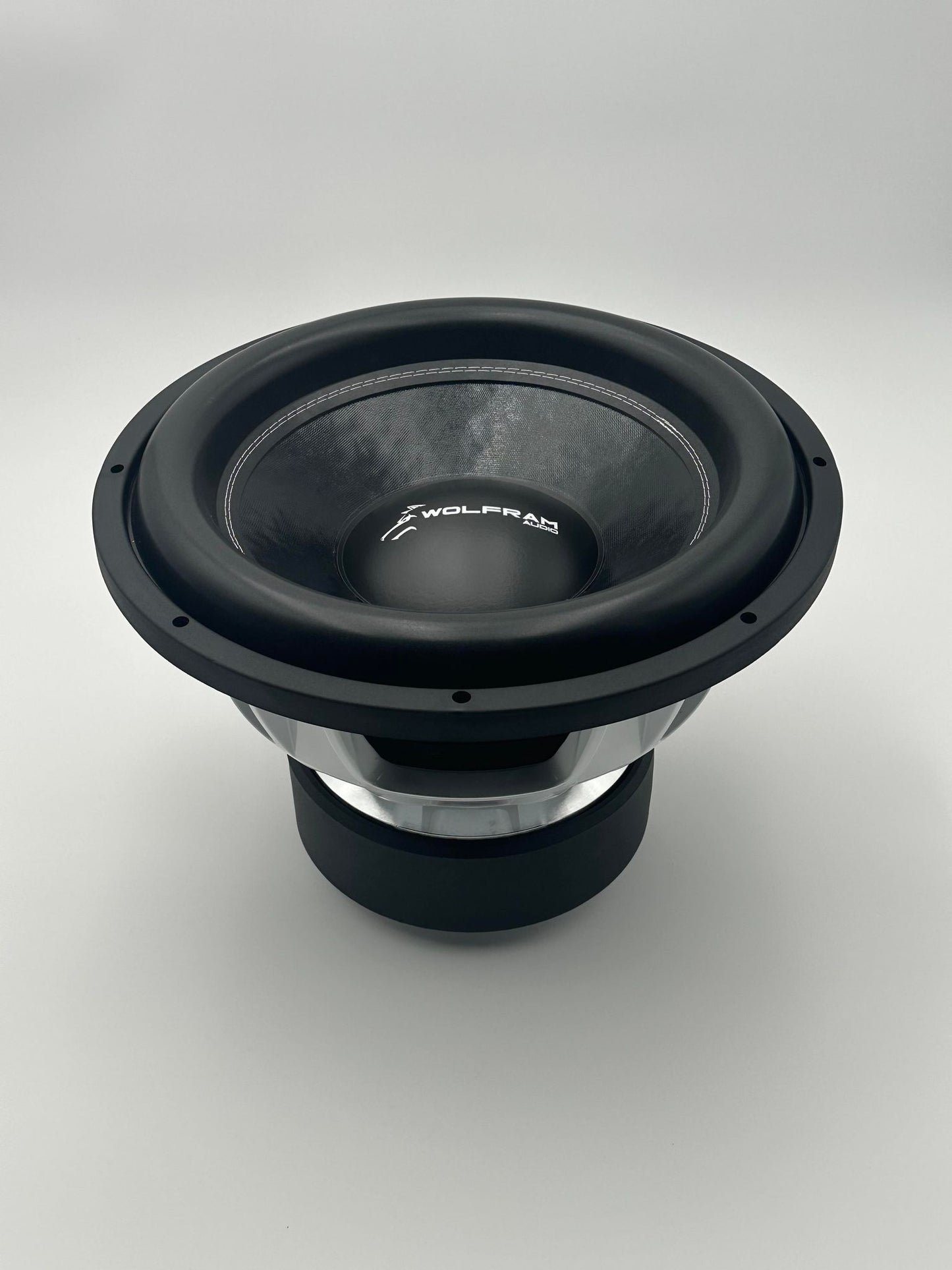

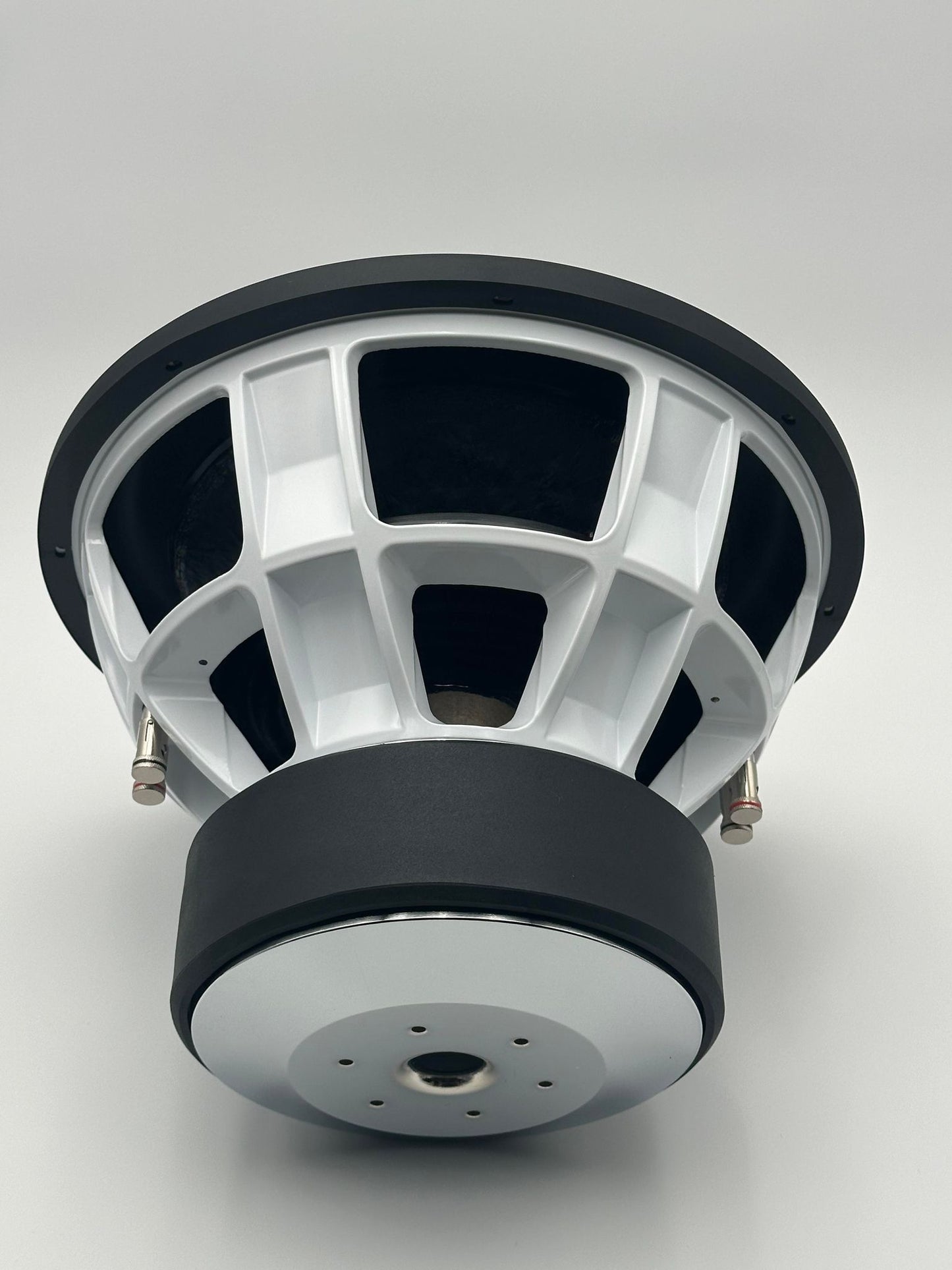

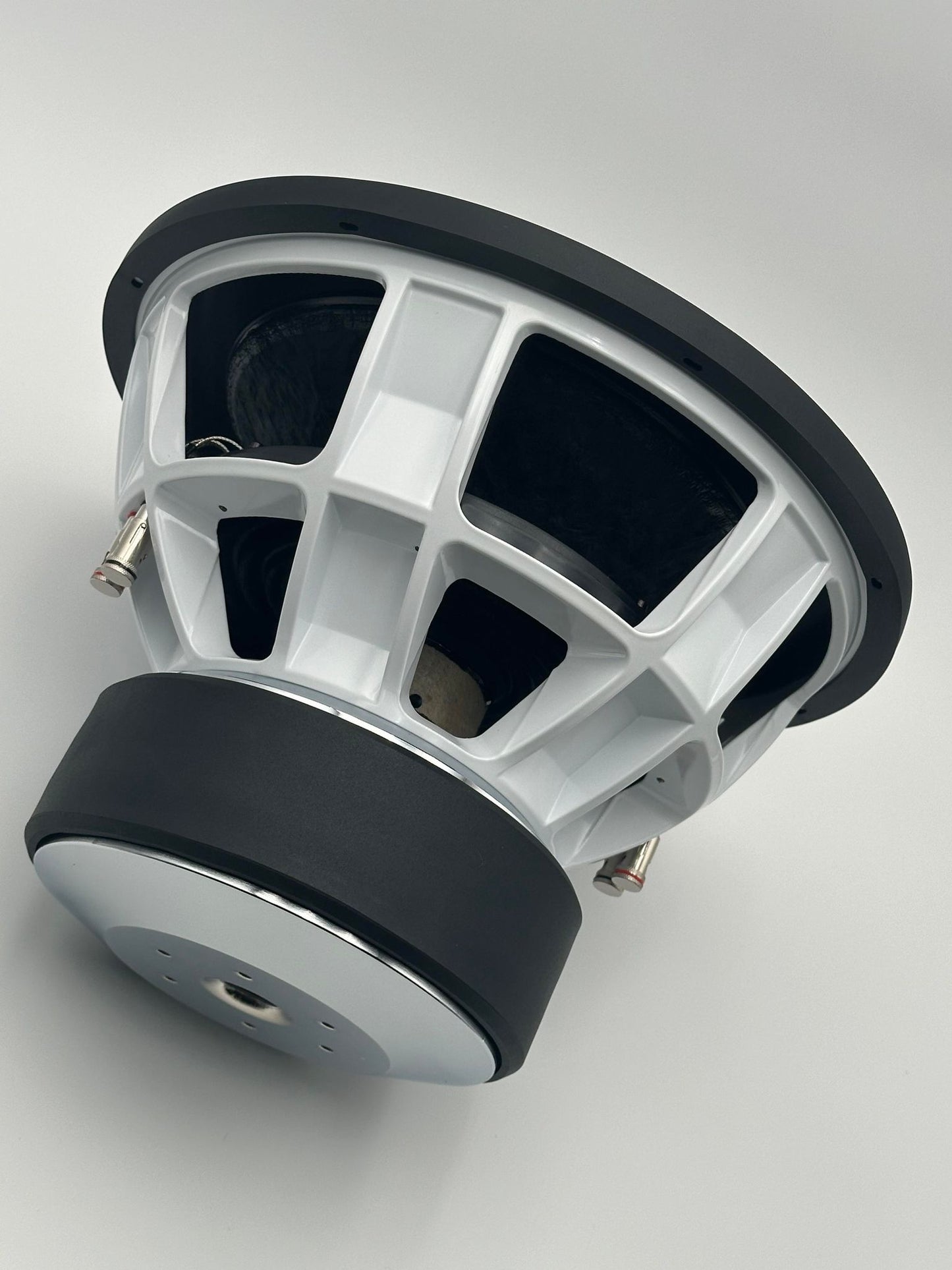

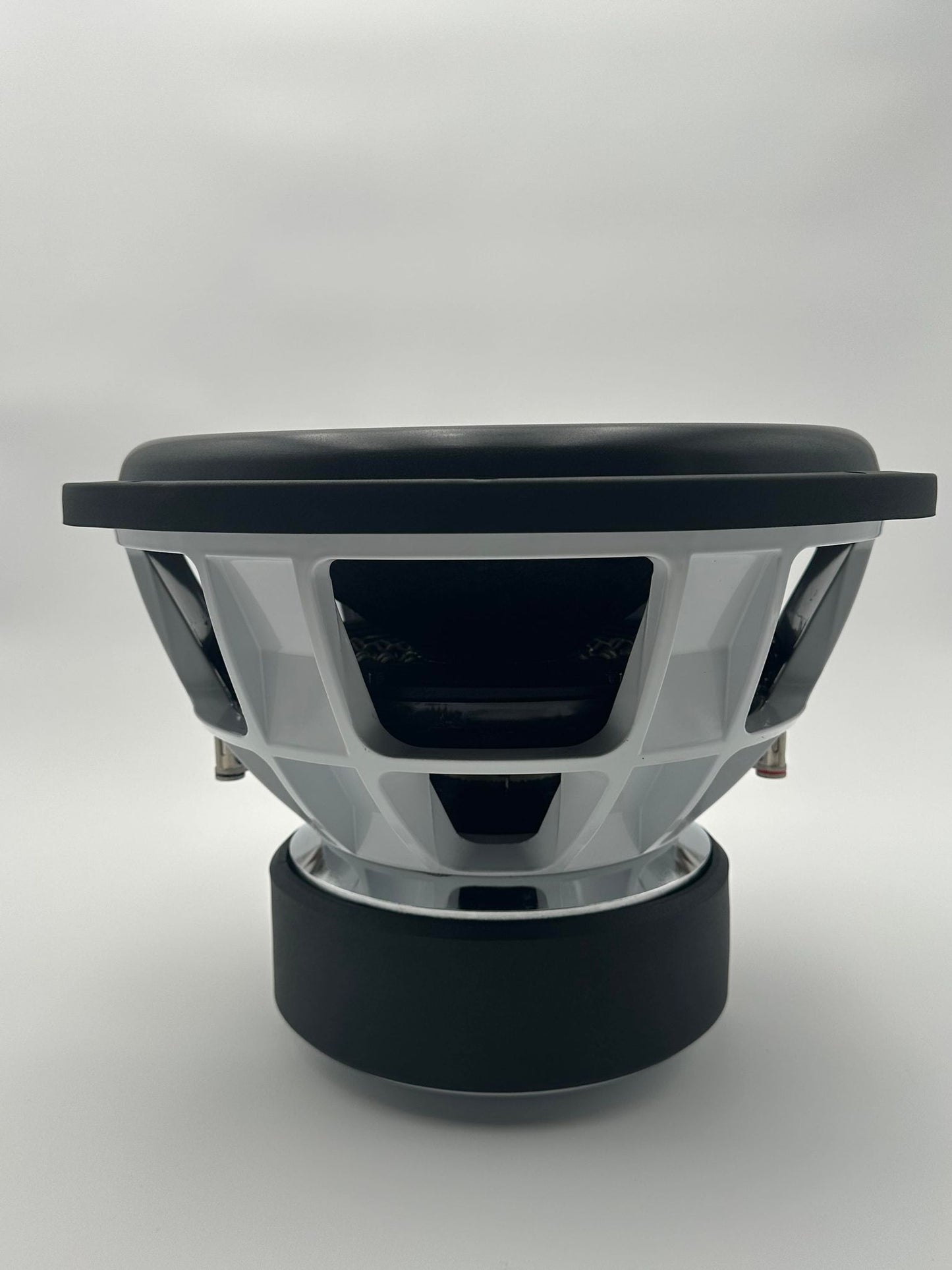

Hg-15 V2 | 15" SPL Subwoofer

ALL NEW HG-v2 : New motor and soft part design along with the all time favored PE Coil

Wolfram Audio introduces the new revision of our Hg-15: our unrivaled 15" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-15 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.

NOT COMPATIBLE WITH THE ORIGINAL HG-15

Specifications:

• Wolfram Audio Hg-15 V2 - 15" SPL Subwoofer
• Dual 1 or 2 Ohm Voice Coil Configuration
• Peak Power : 4000 Watts
• RMS Power : 2000 Watts
• Competition Grade Pressed Paper Cone
• Stitched High Roll Foam Surround
• Massive Triple Stacked Magnet
• 4 layer Nomex Spider
• 3" Flat AL Wire Voice Coil
• 4 Gauge Push Terminals

• Sensitivity : 88.4 dB
• Fs : 35.1 Hz
• Re : 1 or 2 Ohms
• Qms : 3.16

• Qes : 0.49
• Qts : 0.42
• Nref : 0.435%
• Cms : 0.059 mm/N
• Bl : 16.2

• Vas : 51 L
• Mms : 346.7 g
• Xmax : 38 mm (One-Way)

Enclosure Recommendations:

• 2.5 - 2.75 ft³ Sealed
• 3.5 - 4.0 ft³ Ported (Tuned 32hz - 34hz)
• Mounting Depth: 9 7/8"
• Cutout Diameter: 14 1/8""
• Displacement: 0.17 ft³
